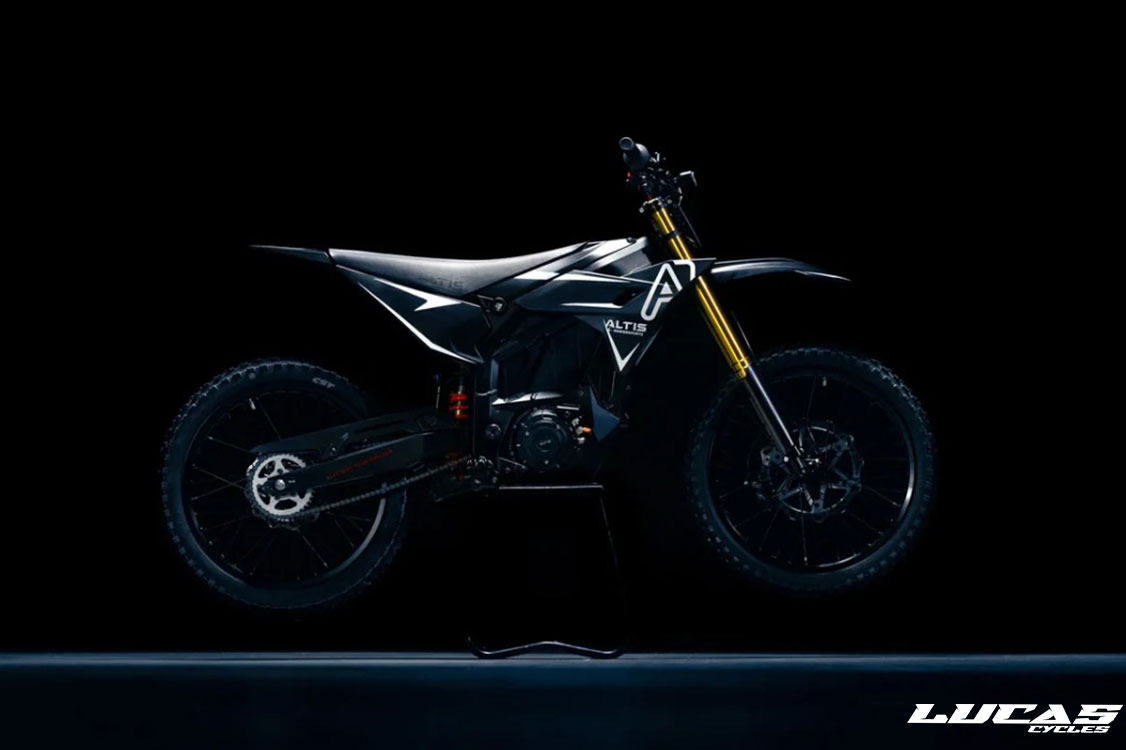

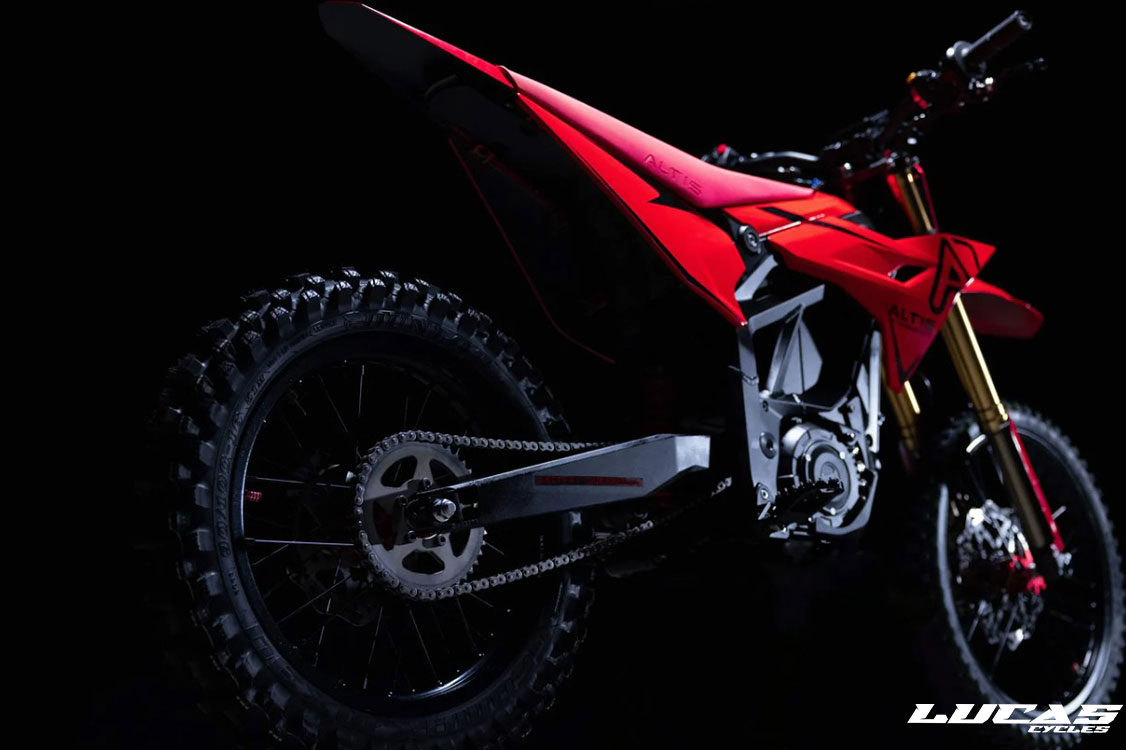

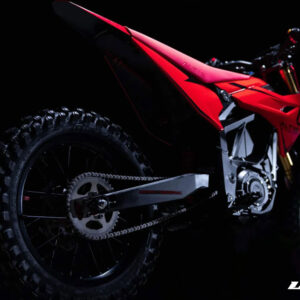

Altis Sigma 98V Hairpin Motor Electric Bike

Built for Next-Level Off-Road Performance

Altis sigma 98v​ Powersports brings riders the future of off-road design with the 98V hairpin motor electric bike. This system sets new standards for power, efficiency, and safety. Every part of the build works to give you faster acceleration, longer rides, and better handling on rough terrain.

Unmatched Efficiency on Every Ride

The 98V hairpin motor uses rectangular wire winding to cut down resistance and heat loss. As a result, more power transfers to the wheels while wasting less energy. You stay on the trail longer, with smoother performance and reduced strain on the system.

Power Density That Delivers

Because of its compact design, the 98V hairpin motor offers a stronger power-to-weight ratio. Torque and acceleration hit harder, yet handling remains light. This balance gives riders quicker responses and better agility when navigating technical trails.

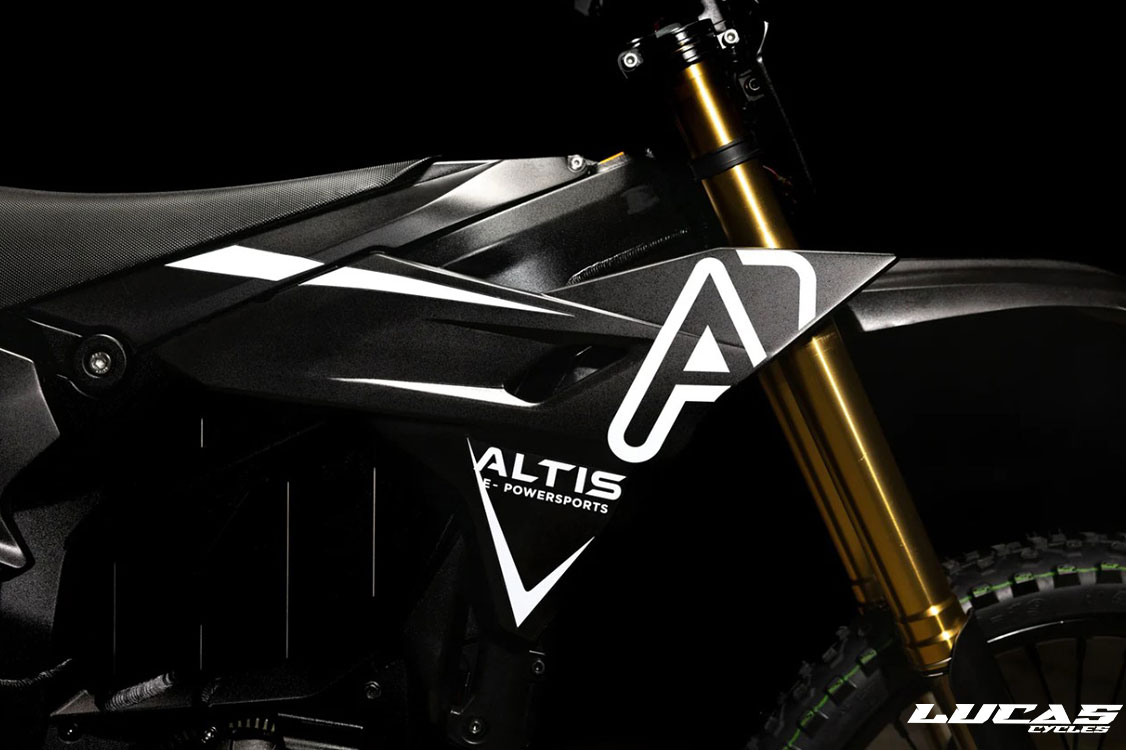

Altis Sigma 98v MX Black Reliability Built Into the Core

Durability matters in off-road conditions. That’s why the 98V hairpin motor is designed for cooler operation and reduced wear. The windings improve thermal stability, which protects internal components from stress. The result is a motor that stays consistent across long, demanding rides.

High Voltage, Better Safety

The 98V system uses less current to deliver more power. Lower current reduces heat, which cuts the risk of overheating and fire. In addition, advanced insulation, stronger connectors, and fault detection systems keep the bike safe under heavy loads.

Efficient Energy, Longer Life

Higher voltage means more efficient power transmission. Components face less strain, leading to fewer faults and longer system life. This efficiency also supports faster charging and less downtime between rides.

Model Highlights

• 97.2V 35Ah Samsung 50S battery cells (Greenway Pack)

• 22kW peak hairpin motor (automotive standard)

• Charging time: 2 hours (20%–80%)

• Adjustable off-road air-spring suspension

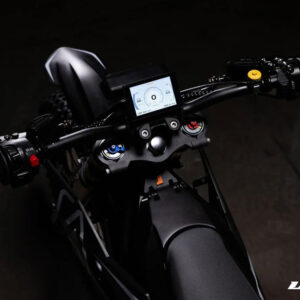

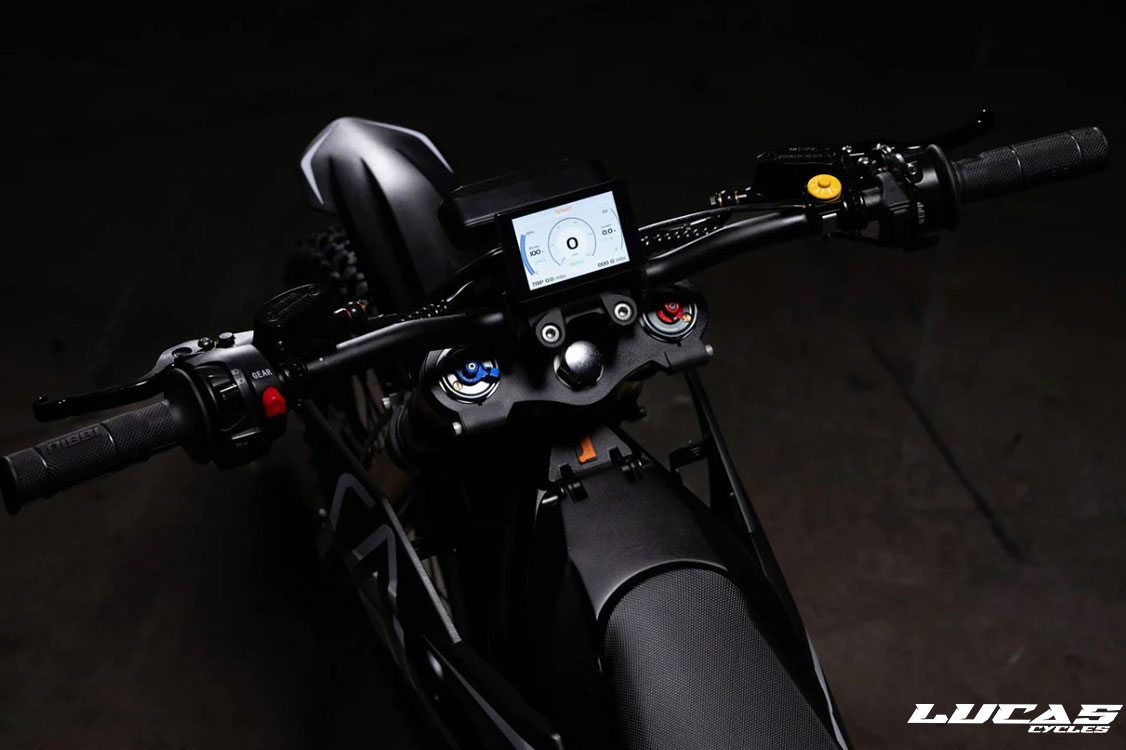

• 3.5″ TFT display with NFC feature

• 5 levels of regenerative braking

• Heavy-duty disc brakes

• CST off-road tires

• Headlight, taillight, and brake light switch

Standard Setup

• Torque: 533 Nm (39T sprocket)

• Wheels: 19″ front / 19″ rear

MX Setup

• Torque: 601 Nm (44T sprocket)

• Wheels: 19″ front / 16″ rear

Chassis and Suspension

• Weight (with battery): 88 kg

• Wheelbase: 1285 mm

• Ground clearance: 300 mm

• Seat height: 840 mm

• Frame: Forged aluminum alloy

• Suspension travel: 200 mm front / 200 mm rear with linkage

• Steering angle: 26°

• Brakes: 260 mm front / 220 mm rear

Motor and Battery Specs

• Max Power: 22 kW

• Torque: 72 Nm

• Battery: 97.2V 35Ah Lithium-Ion ALTIS PowerPack

• Energy content: 3.402 kWh

• Cooling: Air-cooled

• Charging input: AC110V/112V 12.5A

• Charging time: 120 min (20–80%) / 180 min (20–100%)
